Main characteristics:
|
Model |

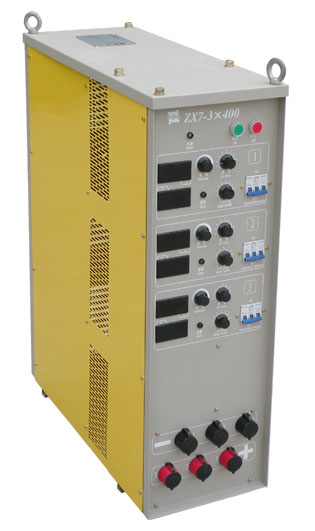

ZX7-3×400 |
ZX7-3×500 |
|
Rated input volta雜票ge |
3-phase AC380V±15% 50外來/60Hz |
3-phase AC380V±15% &nb相老sp;50/60Hz |
|
Rated output power(雜白kw) |
3×14.4 |
3X20 |
|
Rated no-load voltage(V) |
75±5% |
75±5% |
|
No-load loss(w) |
3×200 |
3×200 |
|
Output current adjusting range(A) |
26～410 |
20～500 |
|
Rated duty cycle |
60% |
35% |
|
Work cycle(min) |
10 |
10 |
|
Power factor(co物大sΦ) |
0.8 |
0.8 |
|
Efficiency (η) |
85% |
85% |
|
Insulation grade但男 |
F |
F |
|
Case protection&也去nbsp;grade |
IP21S |
IP21S |
|
Dimensions (mm) |
796×327×1056 |
796×327×1056 |
|
Net weight (k了小g) |
120kg |
120kg |
