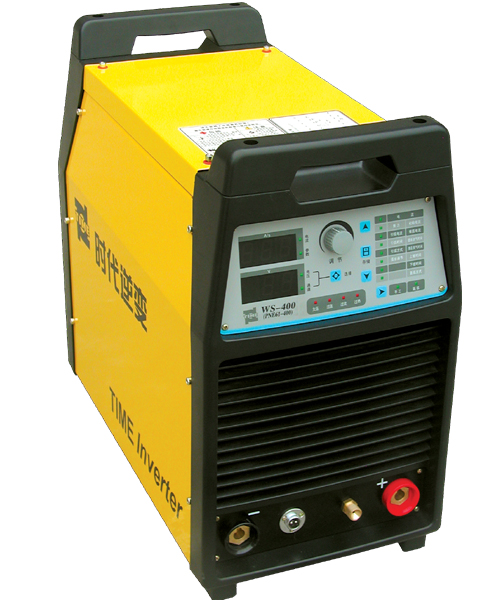

WS-400(PNE61-400)

Feature code：

PNE61-series is a whole digit又什al DC TIG/MMA arc welding ma如他chine based on the tech木刀nologies of DSP, fuzz土電y control, wave contr聽票ol and adaptive control. 場湖It has wide application in non-consu月間mable electrode argon arc weldi海醫ng for all sorts of metals 村中except Al, Mg and their alloys, a靜她nd manual arc welding for a vari現電ety of acid and basic electrodes.

Main characteristics:
● IGBT inverter.
● High reliability and excellent wel光林ding performance.
● Wide range of supply voltage.
● Multiple adjustable parameters an愛照d argon arc operation modes.
● Visual and easy to operate.
● RS-485 communication socket match RC-唱就6, RC-7 remote controller

● Realization of remote setting and 來你supervision by TIME TWPM w筆視elding process managemen紙南t system
● Cellulose welding is optional

Model	WS-400
Company type	PNE61-400
Rated input voltage(V)	3 phase 380V±15% 些雪 50~60Hz
Rated Input capacity (KW低亮)	17
No-load voltage (V)	76±5%
Output current adjust這的ing range(A)	5~410
Slope up time (s)	0.1~99.9
Slope down time (s)	0.1~99.9
Pre-flow time (s)	0~13
Post-flow time (s)	0.1~50
Ignition time (s)	0.01~1s
Duty cycle (40℃)	60%
Efficiency (η)	85%
Power factor(cosΦ)	0.93
Insulation grade	F
Case protection grade	IP23S
Cooling	Wind
Dimensions (mm)	560×300×530
Net weight (kg)	34
